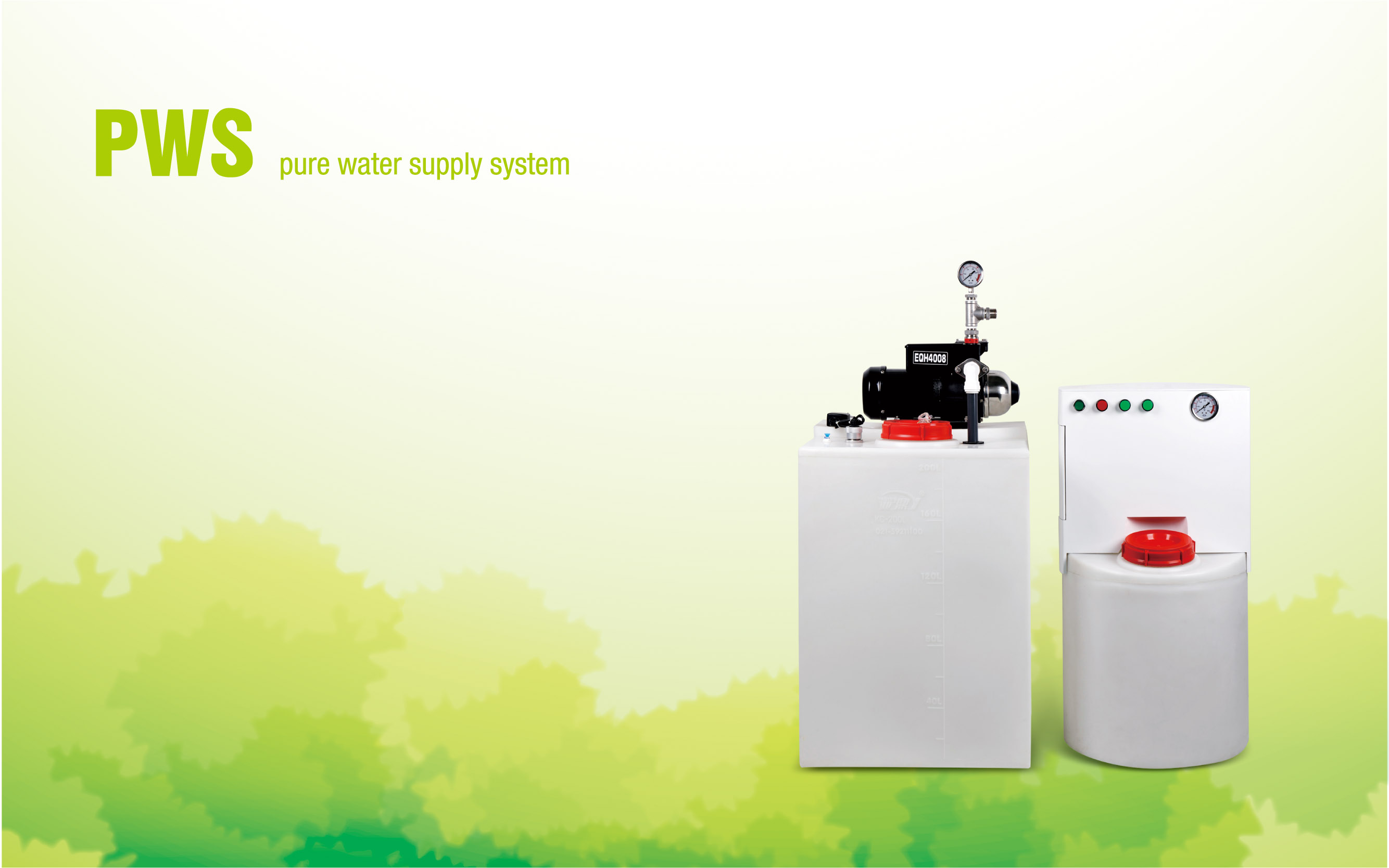

PWS series pure water supply system can combine with any brand´s water purification system to supply pure water for specific equipment, for example, cleaning machine, biochemical analyzer, immunoassay analyzer, constant temperature and humidity chamber, salt spray test chamber, dampening machine, printing machine, laser engraving machine, cooling device and etc. It also could be used for the central water supply.
PWS I:
Suitable for short distance and small amount of pure water´s supply;
PWS II:
Suitable for long distance and large amount of pure water´s supply.
|
Features and Advantages
- Independent power control and automatic operation, easy to install, use and maintain;
- Integrate level control, pressure pump, buffer tank and inlet valves together;
- It is unnecessary to connect to the circuit of pure water main-body. It can run automatically according to liquid lever of the tank.
- Optional UV lamp module, to restrain bacteria’s increase and reduce TOC.
Specifications
| Model |
PWS I-T100R-P12-3G * |
PWS -200S-4008 ** |
| Shape & volume of tank |
Roundness: 100, 200 liters
Square:80,120, 200 liters |
Roundness: 500, 1000, 2000 liters
Square: 200 liters |
| Material of tank |
HDPE (High-density polyethylene) |
| Specifications of pump |
Maximum flow rate |
3, 5, 7, 10, 12 liters/min (Optional) |
70, 100 liters/min (Optional) |
| Vertical self-priming height |
2 meters |
2 meters |
| The rated stop pressure |
0.45Mpa±0.4Mpa |
0.3Mpa±0.4Mpa, 0.35Mpa±0.4Mpa |
| Max pressure/pump lift |
About 0.8Mpa/80meters |
About 0.3Mpa/30meters, About 0.35Mpa/35 meters |
| Volume of buffer tank |
12 liters |
1 liter |
Remarks:
*Introduction of PWS I-T100R-P12-3G: "T100"-volume of tank:100 liters, "R"-shape of tank: roundness, "P12"-flow rate:12 liters/min, "3G"-volume of buffer tank: 3 gallon.
**Introduction of PWS II-T200S-4008: "T200"-volume of tank: 200 liters, "S"-shape of tank: square, "4008"-flow rate:70 liters/min.
|
