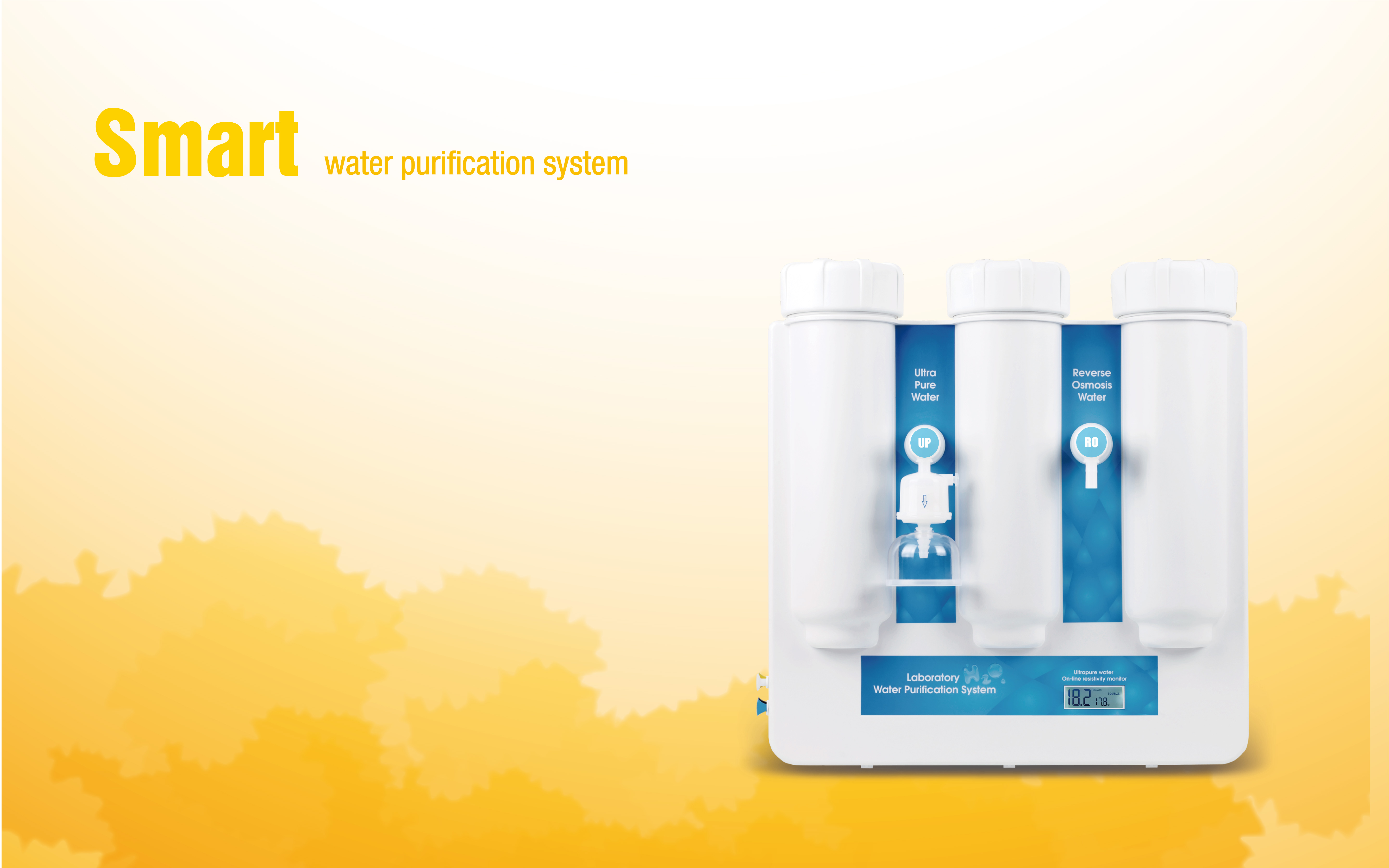

Smart series,the smallest and most compact lab water system from tap to ultrapure water,integrating pretreatment,RO,DI,UV,UF and terminal filter into one.
With injection molding process case,single stage RO system,1 pump,portable TDS test pen and on-line resistivity monitor,its output ranges from 15 to 30 liters/hour with tap water inlet. And with distilled water inlet,its output is up to 2 liters/minute.
With tap water inlet,it can produce single stage RO water,deionized water and ultrapure water. And with distilled water inlet,it can produce deionized water and ultrapure water.
The single stage RO water´s Ion rejection rate is more than 97%. The deionized water´s resistivity is above 16MΩ.cm,and the ultrapure water´s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM,CAP,CLSI,EP and USP.
|
Features and Advantages
|
Injection molding process case
Whole case with injection molding process
The smallest and most compact lab water system from tap to ultrapure water,integrating pretreatment,RO,DI,UV,UF and terminal filter into one
|
 |
|
2 kinds of monitoring system
On-line resistivity monitor,with apheliotropic LCD display,to detect the quality of deionized or ultrapure water.
Attached portable TDS (total dissolved solid)/conductivity test pen,with dry cell design,to detect the quality of feed water and RO water.
|
 |
|
Easy-to-replacing cartridge
Independent cartridges design,with fast adapters,easy to replace,and running in low cost.
|
 |
|
Single stage RO and 1 pump system
1st pump,to achieve single stage RO system,easy to maintain.
|
 |
|
Whole plastic shell with high-strength
Excellent ergonomic design,avoid rusting and keep clean,to meet GLP standard.
|
 |
|
Top cap of pretreatment in the case can be rapidly opened to replace the cartridges without opening the case.
System automatically works,with electronic pressure sensor and microcomputer controlling.
Automatic stop without water,automatic stop when water tank full,automatically cutting off water when pump stopping,guaranteeing 24 hours´ work.
Auto self-flushing of RO membrane function,extend RO membrane´s life.
External water tanks is optional to meet different need and assure ample water-supply.
Tube and adapter with NSF authorization and top quality,reduce TOC level and assure ultrapure water´s quality.
Long life pretreatment (including PP fiber,and active carbon cartridge),effectively protect RO membrane.
RO module with DOW´s membrane,ensure long life,stable operation and high desalinization rate.
4 independent ultrapure cartridges with DOW´s top polishing resin,ensure ultrapure water´s quality up to 18.2 MΩ.cm,with the lowest TOC level and running cost.
Double wavelength (185&254nm) ultraviolet lamp module,restrain bacteria´s increase and reduce TOC.
MWCO 5000D ultrafiltration module,effectively eliminate endotoxin,and suitable for precise cell cultivating and IVF.
(0.45+0.1)μm double layer PES terminal disinfection filter,assure that terminal pure water is absolutely axenic.
|
|
|
